Llanrwst

aka Bwlch yr Haiarn Mine


Lead Mine

Worked from mid 1750s?

Jan 1st, 2024 from Cambrian by Buddle-Bot

Feb 27th, 2025 by BertyBasset

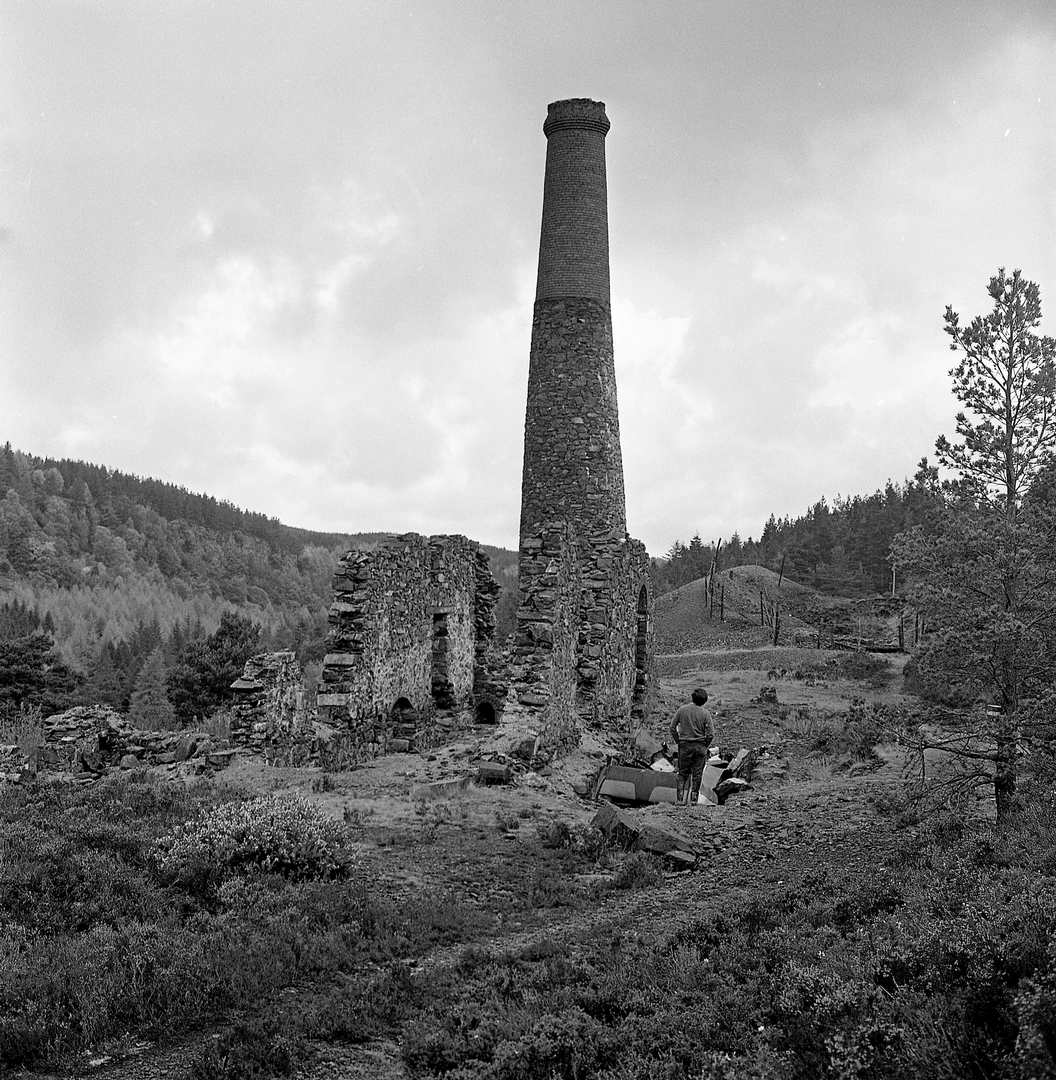

Llanrwst Engine House Chimney
North Wales
Gwydyr Forest
53.117157, -3.824851
SH 7797 5933
Private Land
250m
1,500m
100m
1,300t
#517


This entry serves as a general entry for Llanrwst Mine, and the marker does not represent any particular feature.

This was a large and prominent mine marked by an engine house chimney. Situated at Bwlch yr Haiarn. Three lodes were worked; the N-S Red and Ffridd Lodes, and the ENE-WSW Principal Lode.

There are a number of capped and locked shafts none of which are currently accessible. Most prominent is Endean’s Engine Shaft next to the old engine house. On a hillock to the south east is the capped Doctor’s Shaft. Just across the forest track to the east is the gated Shallow Adit and the capped Air Shaft. The capped Footway and Diagonal shafts are in the grounds of the Outdoor Centre. To the right of the road to the north, and just opposite the Vale of Conwy Level 2 adit is the gated Llanrwst Deep Adit. The adit is in an area of extensive surface workings, all overgrown, dangerous and fenced off.

To summarise the shafts:

Name Depth Purpose
Footway 20m Original sinking (?), Ladder access.
Diagonal 75m Main pumping shaft prior to Endean.
Doctor 40m
Endeans 75m Main pumping shaft by 1870s
Air 25m Ventilation
New Internal pumping shaft

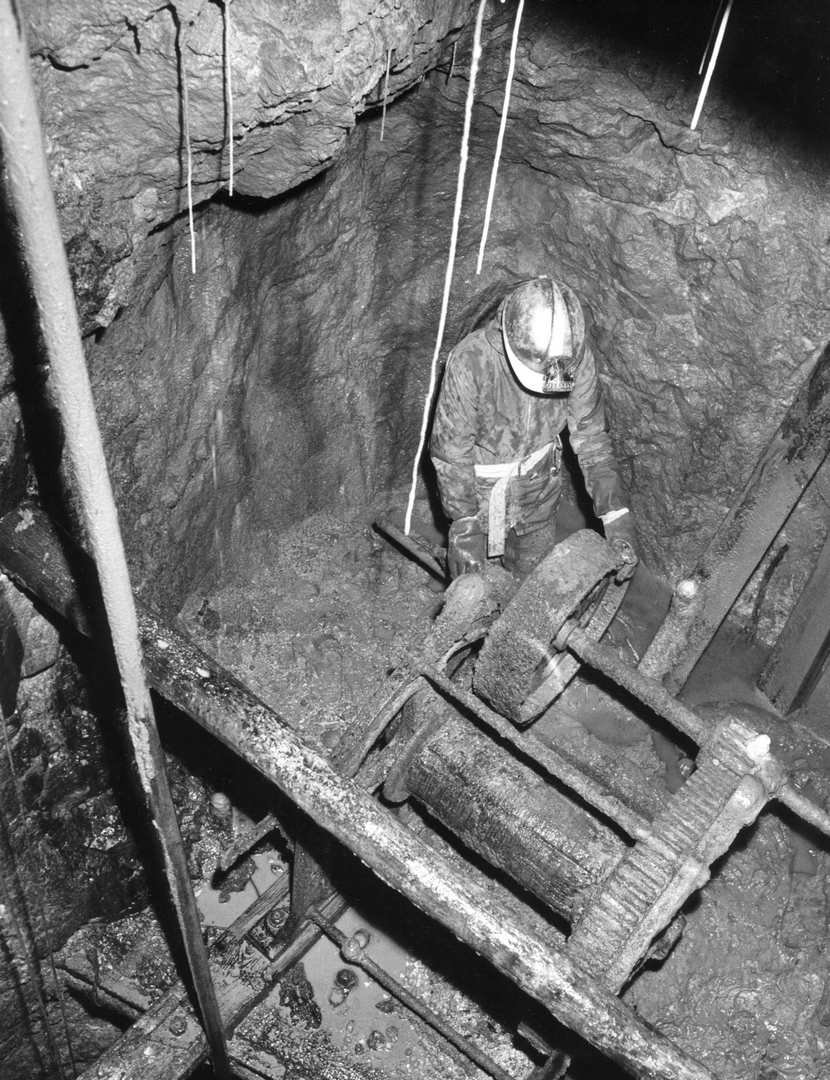

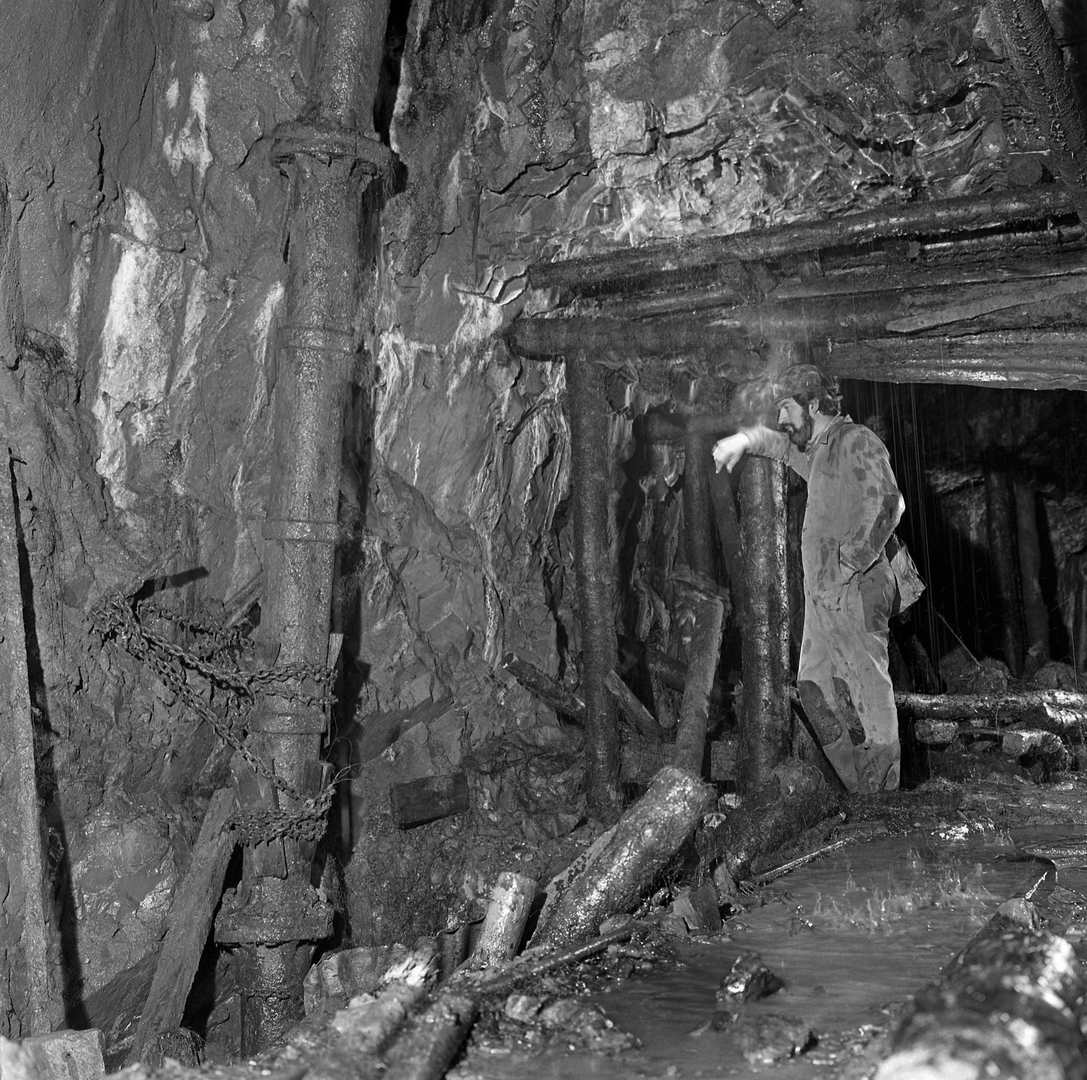

Underground, both the New Shaft (an underground pumping shaft offset from Endean’s) and the Diagonal Shaft were intercepted by the Parc Mine Number 2 level, through which Llanrwst ore was to be extracted, but in the event was never utilised.

It is still possible to access some of Llanrwst from Parc No 2, via the New Shaft, although this may have deteriorated. See C. Cowdery link.



Year Activity
1853-1864 After sporadic workings over almost a century where the Ffridd Lode outcropped in Gwydyr Nant, a more focused effort at mining was made by a group of Liverpool businessmen. Their immediate aim was to drive below old workings where good ore was expected. Ten tons of ore were raised during this period.
1864-1872 230 tons were raised over the period. The mine was abandoned by the company.
1873 Taken over by the Llanrwst Lead Mining Company. This was very much a company driven by J.P. Endean, although his primary interest was the £43,000 in £2 shares in the mine that he was paid as a vendor. At the time of his death in 1879, these shares were being traded at £4. Robert Knapp served as Mine Captain. The workforce increased from a handful to around one hundred by 1880.
1878 300 tons of ore were weighed. A report was published in the Mining Journal detailing mining operations and estimates of reserves.
1880 Due to various factors—including low metal prices, poor ore at depth, liabilities, and the death of Endean—the company was wound up.
1881 Taken over by the Caernarvonshire Great Consols Lead Mining Company. After a share subscription and paying off liabilities, the company had only £4,000 in working capital.
1884 Workers were laid off. The mine was placed on care and maintenance.
1905 Leased by Charles Holmes.
1919 Leased by the Western Development Syndicate.
1920 The WDS was absorbed by the Eagle Lead Company.
1929 In the hands of a receiver.
1930 Acquired by D.W. (Dawson Ware) Holdings.
1950s Parc Level 2 workings on the Principal Lode intersected the Diagonal Shaft, where the rising main was found to still be in situ.

Although leased, none of the 20th-century companies re-opened Llanrwst.



Most shafts, all of which all are capped and locked, are in grounds of Outdoor Centre and access is not permitted. However a public footpath can be used to view some of the shafts.

The Deep Adit is next to a public footpath, is gated (probably locked) and reaches a run in area (1997) not far from the entrance.



Publications (26)

  • (1922); BGS - Mineral Resources of GB (c1920s) Vol XXIII - Lead & Zinc: Pre-Carboniferous Shropshire & North Wales; 111 pages
  • (2016); CATMHS - Newsletter 125-November; 40 pages
  • Bennet & Vernon (1989); Mines of the Gwydyr Forest, Book 1 - Llanrwst Mine and its Neighbours
  • BGS - Mine Plans (large, zoomable) - A Section Of Drws-Y-Coed Copper Mine (llanrwst Mine); 1 pages
  • BGS - Mine Plans (large, zoomable) - Great Consols Mine (llanrest)mine; 1 pages
  • BGS - Mine Plans (large, zoomable) - Llanrwst And Gorlan Mines Section Of Principal Lode; 1 pages
  • BGS - Mine Plans (large, zoomable) - Llanrwst Lead Mine Ltd Plan Of Major Lodes With Their Projected Course On No3 Level Park Mine; 1 pages
  • BGS - Mine Plans (large, zoomable) - Llanrwst Lead Mines Ltd Diagram Of Principal Lode; 1 pages
  • BGS - Mine Plans (large, zoomable) - Llanrwst Lead Mines Ltd Plan Of Workings; 1 pages
  • BGS - Mine Plans (large, zoomable) - Llanrwst Mine; 1 pages
  • BGS - Mine Plans (large, zoomable) - Parc Mine (incomplete) Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Parc Mine (incomplete) Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Parc Mine Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Parc Mine Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Parc Mine Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Parc Mine Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Section Of Gt Consols Mine (llanrwst Mine); 1 pages
  • BGS - Mine Plans (large, zoomable) - Section Of Gt Consols Mine (llanrwst Mine); 1 pages
  • BGS - Mine Plans (large, zoomable) - Section Of Llanrwst Mine; 1 pages
  • BGS - Mine Plans (large, zoomable) - Surface Plan Of Parc Mine (jci &co Ltd) Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Surface Plan Of Parc Mine Llanrwst Area; 1 pages
  • BGS - Mine Plans (large, zoomable) - Surface Plan Of Parc Mine Llanrwst Area; 1 pages
  • Brown, Ivor J. and Willies, Lynn (2002); PDMHS (Peak District Mines Historical Society) 15-1 Sum - Millclose Mine at Cowley Knoll, Wensley; 11 pages (60-70)
  • Jones, W.G. and Willies, L. (1975); PDMHS (Peak District Mines Historical Society) 06-1 May - Impressions of visits to Parc Mine, North Wales; 2 pages (47-48)
  • Shaw, Donald L. (1971); Gwydyr Forest in Snowdonia - a History (of Forestry); 140 pages
  • Willies, Lynn (1976); PDMHS (Peak District Mines Historical Society) 06-3 Apr - Visit to Parc Mine, North Wales; 1 pages (140)


Llanrwst Engine HouseLlanrwst Engine HouseLlanrwst Engine House ChimneyView surrounding Endean Shaft
